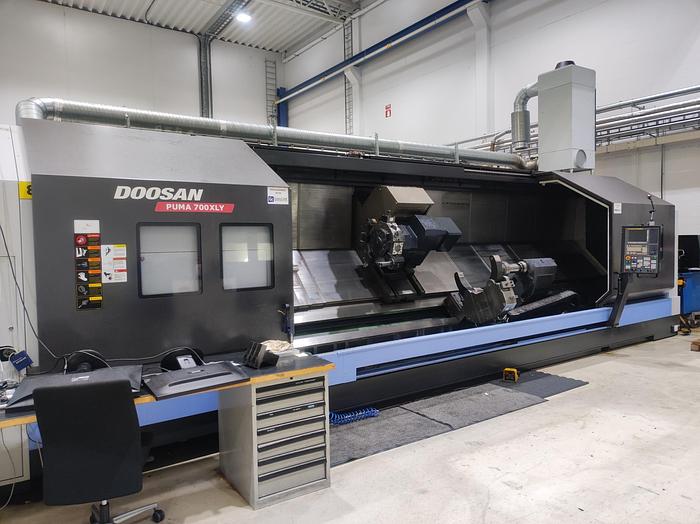

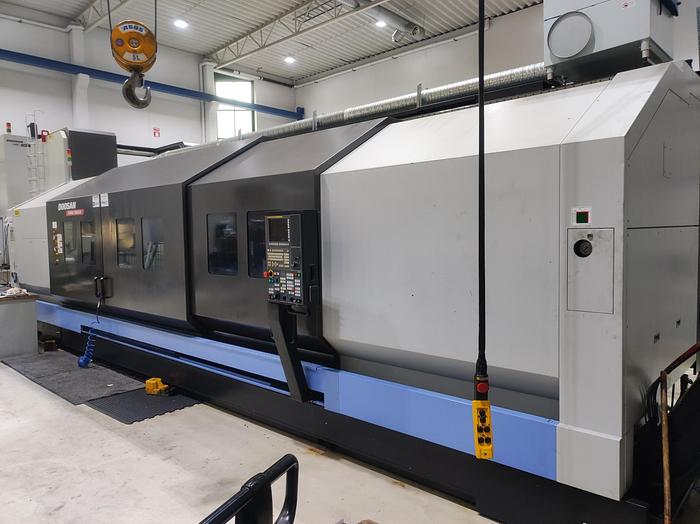

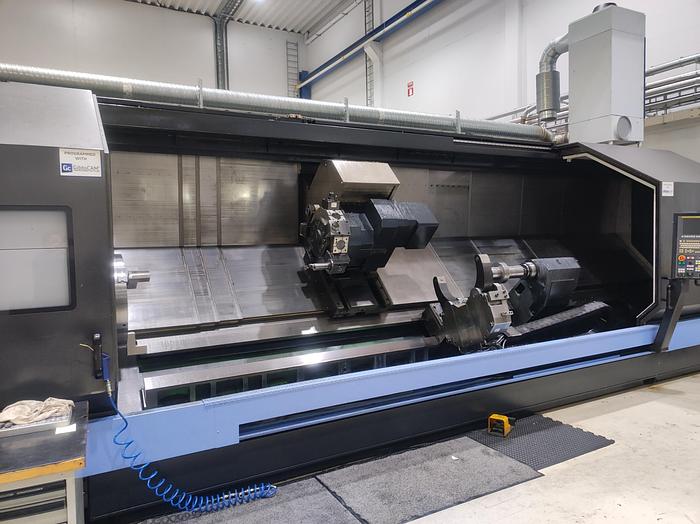

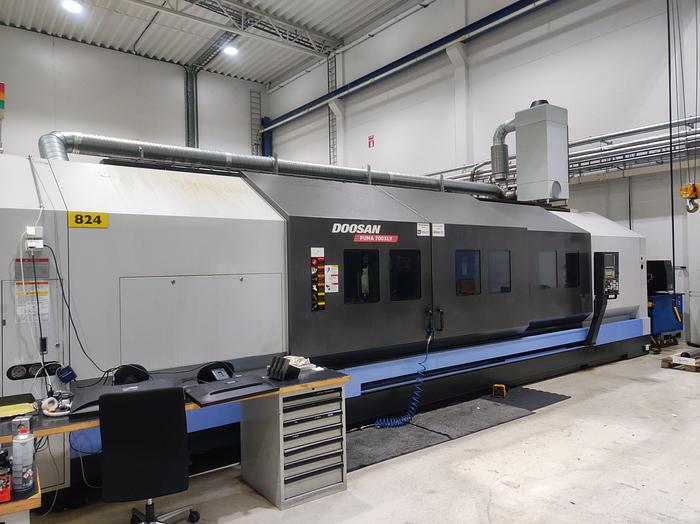

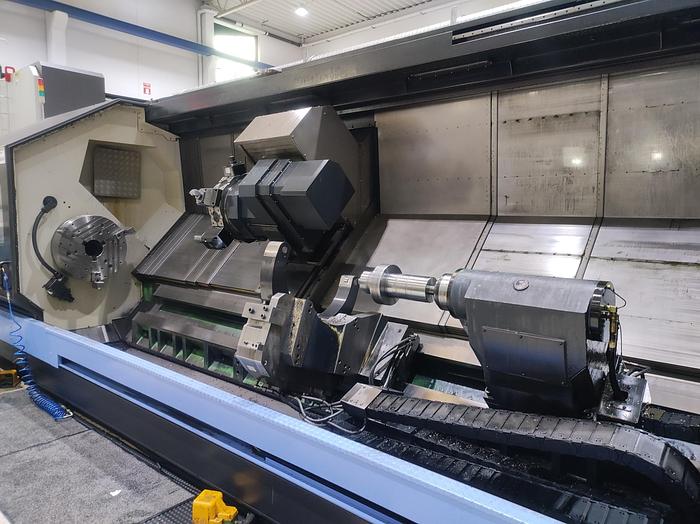

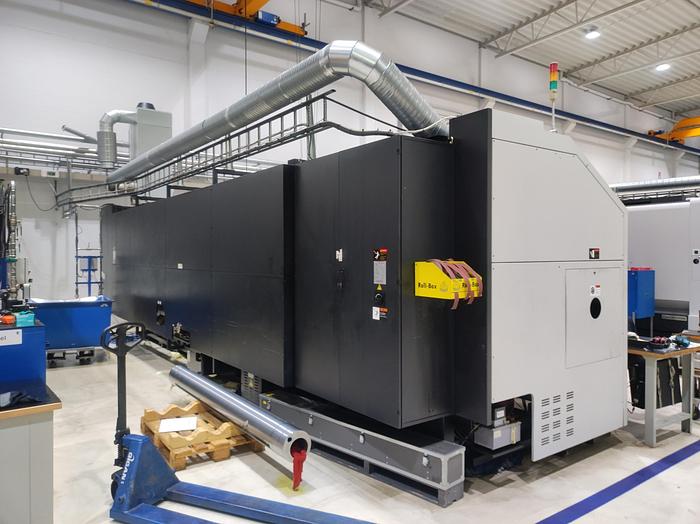

2013 Doosan Puma 700XLY
Description
CNC LATHE WITH ROTARY TOOLS AND “Y” AXIS “Z” AXIS -5.000

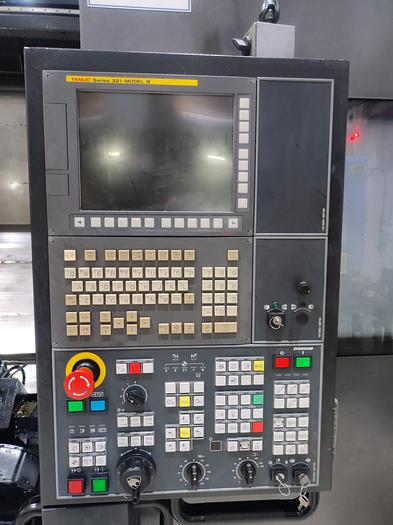

CNC FANUC 32i A 10,4” LCD Color Manual Guide
The 2011 Doosan Puma 700XLY is a reliable CNC lathe designed for heavy cutting, high-precision and efficient operations. This used model from Doosan offers excellent performance, making it an ideal choice for multiple machining tasks. It features robust construction with 45º extra long bed (5 m) and advanced technology ensuring large capacity (up to 5 metres long and 900mm diameter), massive chip removal, durability and high precision in your production processes.
The Doosan Puma 700XLY is equipped with box ways, a powerful high Tork motor (45 Kw) with Gear Box and a large spindle bore, allowing it to handle high chip removal and complex machining tasks with ease in one clamping, thanks also to the high powered rotary tools and “Y” Axis. The machine's user-friendly interface and software enable smooth operations and easy programming, reducing downtime and increasing productivity. Whether you are looking to upgrade your current equipment or need a versatile lathe for new projects, the Doosan Puma 700XLY is a trusted solution that stands up to rigorous industrial demands.
INCLUDED EQUIPMENT:

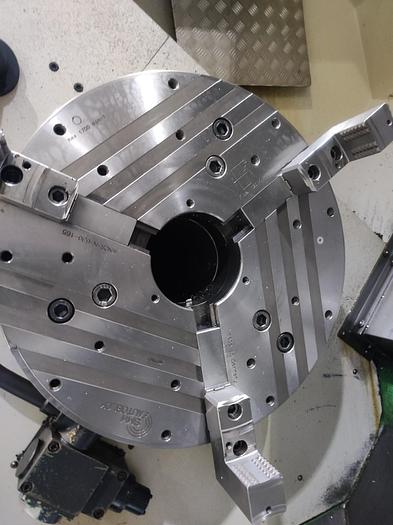

-Hydraulic Chuck SMW AUTOBLOK KNCS type diámeter 630mm
- C AXIS 360(0,001º)
-Automatic tool setter
-Built in Tailstok
-Programmable tailstok
-High pressure pump Hydracell 70 bar
-Chip Conveyor
-Mechanical, hydraulic and electric preparation for Automatic steady rest

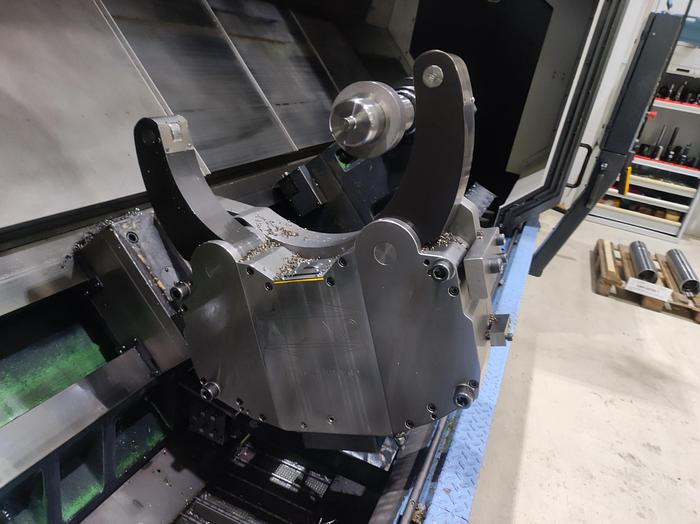

-Hydraulic Steady rest ATLING 100-510
-Complete standard Tool holders set for internal-external including 4 rotary (2 Straight - 2 Angular)
-Complete set of de manuals (Doosan and Fanuc)
Under power at Excellent Condition. Ready for inspection. Immediate delivery
Specifications
Manufacturer | Doosan |
Model | Puma 700XLY |
Year | 2013 |
Condition | Used |
Stock Number | 00004 |
Swing over Bed | 1.140mm |
Swing over Sadle | 1.000 mm |
Max. turning diameter | 750mm |
Max. turning length | 5.050mm |
Axis Travels | X 400mm Y 200mm Z 5.100mm |
Chuck Size | 630mm |
Bar Capacity | 164mm |
Spindle Nose | ASA-A2-15 |
Main Spindle | 1.500 Rpm 45kw/75kw (Gear Box) |
Turret | 12 stations BMT 85P (Indexing time 1 position 0,25 seg) |
Rotary Tools Motor | 11Kw 3.000Rpm |
C axis | Continuous (0,001º) |
Tailstock Travel | 4.885mm |
Tailstock Quill Diameter/Stroke | 180mm/200mm |
Hydraulic Chuck | SMW AUTOBLOK KNCS - 630mm |
Tailstock | Built in and Programmable |
Chip Conveyor | Side (new 6 month) |
Steady Rest | Automatic ATLING 100-510 |
Tool Holders | Complete set for internal-external including 4 rotary (2 Straight 2 Angular) |
Manuals | Complete DOOSAN and FANUC* |
Condition of the machine | EXCELLENT CONDITION. Under power for inspection.Inmediate delivery |
