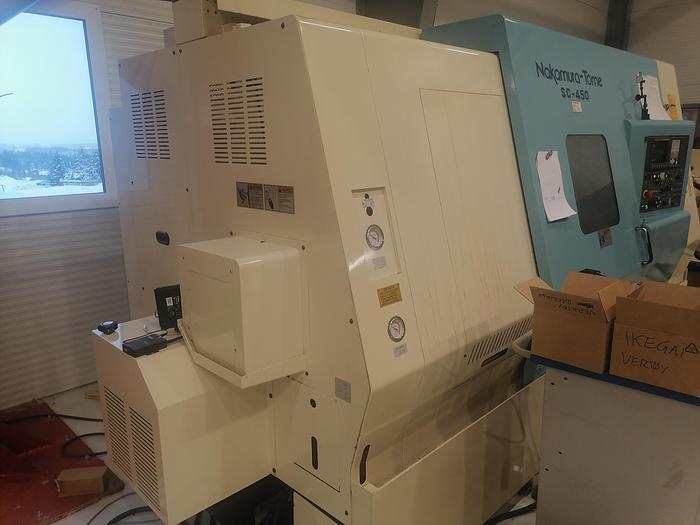

Nakamura Tome SC-450
or
Call +34 605 087 617
Description
2-AXIS CNC LATHE, HIGH RIGIDITY

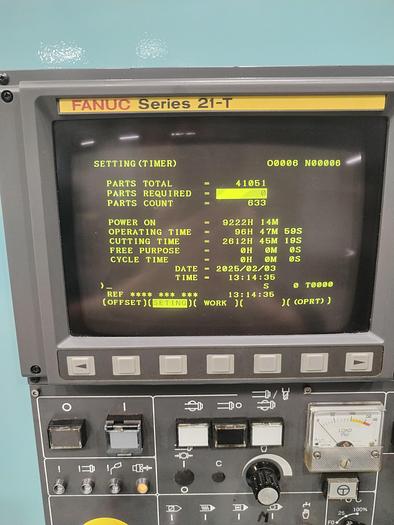

CNC FANUC 21 T
Specifications
| Manufacturer | NAKAMURA |
| Model | SC-450 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 66 |
| CNC | FANUC 21-T |
| Swing over bed | 810mm |
| Swing over saddle | 520mm |
| Max. Turning Diameter | 465mm |
| Max. Turning length | 788mm |
| Distance between centres | 1.035mm |
| Axis travels | X 315mm Z 825mm |

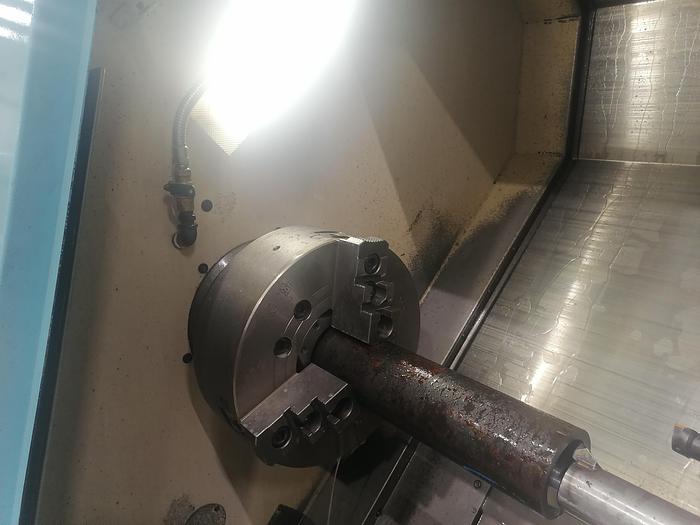

| Chuck diameter | 304mm |
| Bar capacity | 80mm |
| Spindle head | 25-2,500Rpm 30kw/22kw |

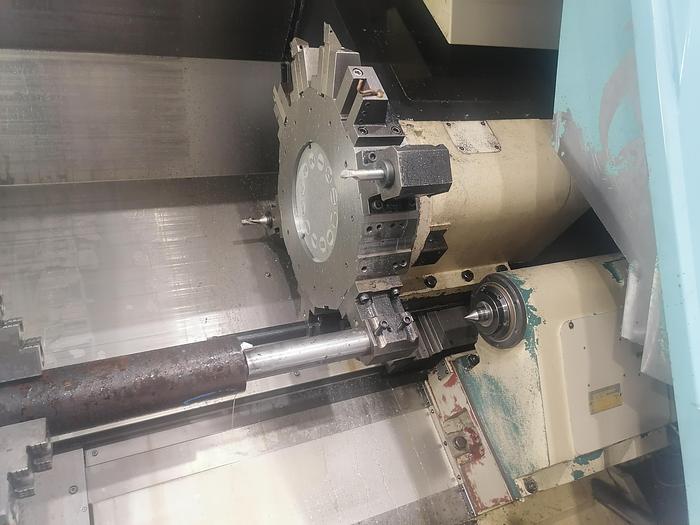

| Turret | 12 stations (0.3sec indexing) |
| Tailstok | Yes |
| Chip conveyor | Yes |
| Satandard tool holder | Included |
| Machine weight | 5.800kg |
| Machine condition | Machine in good condition. Visible in operation |
